A compliant overhead crane inspection program under IS 3177 and ASME B30.2 requires daily operator pre-flight checks (limit switches, wire rope seating, control responsiveness), monthly mechanical audits (brake pad air gaps, hook throat opening, oil levels), and annual statutory 125% dynamic load deflection testing with NDT weld inspections.
Key Takeaways for Engineers & Procurement Leads
- Over 65% of industrial crane accidents stem from neglected wire rope wear, bypassed limit switches, or unadjusted brake shoes.
- Wire ropes must be immediately retired if broken wires exceed 12 in one lay length or if diameter reduction exceeds 7% of nominal size.
- Hook throat openings must not exceed 15% beyond original factory dimensions; any twist exceeding 10 degrees mandates immediate hook replacement.
- Induct Crane Customer Portal automates AMC contract alerts, preventive maintenance reminders, and digital audit certificate storage.

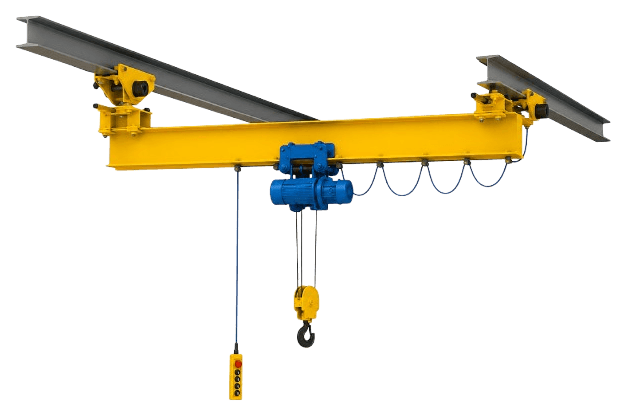

Overhead electric traveling (EOT) cranes are the mechanical backbone of manufacturing plants, foundries, ports, and steel mills. However, operating heavy machinery lifting tons of material overhead carries inherent industrial risks if safety inspections are neglected.
1. Daily Operator Pre-Shift Safety Checklist
Before starting any shift, the designated crane operator should conduct a 5-minute visual and functional inspection:
- Control Pendant & Radio Remote: Verify emergency stop button cuts main power instantly.
- Upper Limit Switch Test: Raise hook block slowly at creep speed to confirm upper rotary/lever limit switch trips before hook touches drum.
- Wire Rope Visual Check: Inspect for bird-caging, severe kinking, core protrusion, or jumping out of drum grooves.
- Brake Responsiveness: Lift a light load 300mm off the ground and confirm zero slippage when controls are released.
- Audible Warning Horn: Ensure safety warning siren operates during Long Travel (LT) and Cross Travel (CT) movements.
2. Monthly Mechanical & Electrical Audit Points
| Component | Inspection Parameter | Rejection / Action Criteria |
|---|---|---|
| Wire Rope | Broken wires per lay length | Discard if > 12 broken wires in 1 lay or > 4 in 1 strand |
| Load Hook | Throat opening expansion & twist | Discard if throat expanded > 15% or twist > 10° |
| Brake System | Brake lining thickness & air gap | Replace lining if thickness < 3mm; adjust air gap to 0.3-0.5mm |
| End Carriage Wheels | Flange wear & tread diameter difference | Replace wheel if flange wear > 40% or tread diameter diff > 1mm |
| Gearboxes | Oil levels & seal leakage | Top up EP-90/320 gear oil; replace worn lip seals |
| Electrical Panel | Contactor arcing & terminal tightness | Clean contactor tips; retorque terminal block screws |
3. Annual Statutory Load Testing & NDT Inspection
Under Indian Factory Rules and IS 3177 guidelines, every industrial crane must undergo a comprehensive annual audit by a certified competent person:
- Static Load Test: 125% of Safe Working Load (SWL) suspended for 10 minutes; girder deflection measured with optical level instrument (maximum allowable deflection = Span / 900 for Class M5-M8).
- Dynamic Operational Test: 110% of rated SWL tested through all motions (Hoisting, CT, LT) to verify brake stopping distances.
- Non-Destructive Testing (NDT): Dye penetrant (DPT) and magnetic particle testing (MPT) on hook shank threads, end carriage connection welds, and main girder tension flanges.
Streamlining AMC & Safety Logs with Induct Crane ERP
Managing physical paper inspection cards for multiple cranes across large factories often leads to compliance gaps. The Induct Crane Customer Portal centralizes your safety records:
"All Induct Crane Annual Maintenance Contracts (AMC) automatically sync visit reports, lubricant replacement dates, and factory inspector load certificates into your company portal dashboard."
Automate Your Factory Safety Compliance
Store your annual load test certificates, monthly preventive inspection logs, and AMC service schedules inside Induct Crane's Cloud ERP Vault for instant access during government factory inspections.
Questions Answered in This Guide
Q1.What is the maximum allowable girder deflection for an EOT crane under IS 3177?
Under IS 3177 and IS 807, maximum vertical deflection under Safe Working Load (SWL) must not exceed 1/900 of the span for heavy duty cranes (Class M5 to M8) and 1/750 of the span for light/medium duty cranes (Class M1 to M4).
Q2.How often should wire ropes be lubricated on industrial cranes?
Wire ropes should be cleaned and lubricated with non-acidic, penetrating wire rope grease every 30 to 60 days depending on duty cycle, environmental dust, and ambient operating temperature.
Q3.Can I track my crane AMC service history online?
Yes. Induct Crane customers can log into http://inductcrane.in/portal/amc to view upcoming preventive maintenance dates, past technician service logs, spare parts replacement history, and digital safety certificates.
