Selecting the correct Electric Wire Rope Hoist requires evaluating capacity (1 Ton to 30+ Tons), duty class (IS 3938 / FEM 1Am to 4m), reeving ratio (2/1 fall vs 4/1 fall for true vertical lift), hoisting speeds (single speed, 1:10 dual speed creep, or stepless VVVF inverter drive), and beam flange width for trolley mounting.
Key Takeaways for Engineers & Procurement Leads
- Monorail Wire Rope Hoists travel along the bottom flange of a single I-beam or box girder, ideal for capacities up to 10-15 Tons.
- Crab Trolley Wire Rope Hoists ride on top of double girders, supporting heavy capacities up to 30+ Tons with superior hook stability.
- 4/1 wire rope reeving provides true vertical lift without lateral hook drift, essential for precision die handling and turbine assembly.
- Induct Crane Customer Portal allows factory managers to order genuine OEM replacement rope guides, brake discs, and wire ropes with 1-click serial number lookup.
The electric wire rope hoist is the heart of any overhead crane system. Responsible for converting electrical energy into mechanical lifting force, selecting the right hoist configuration ensures smooth material handling, operator safety, and long equipment service life.
Monorail Hoist vs Crab Trolley Hoist Configuration

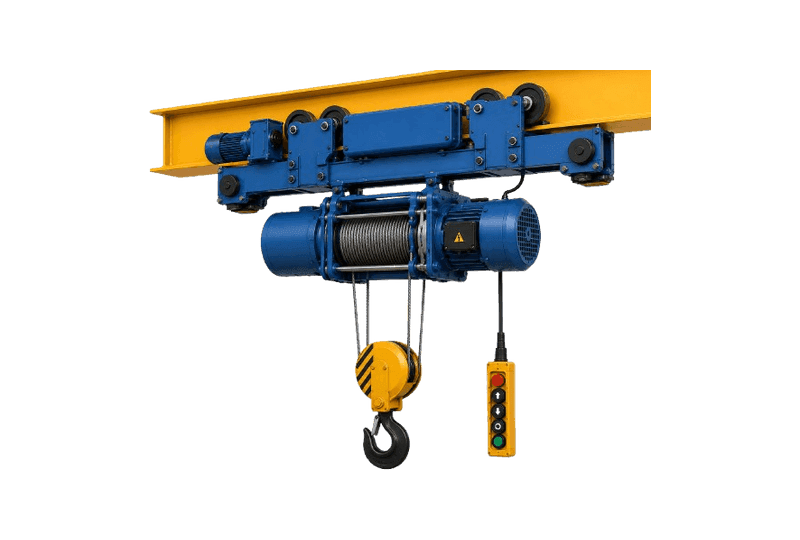

- Monorail Electric Wire Rope Hoist: Designed to suspend from and travel along the lower flange of a single I-beam or box girder. Features compact dimensions, making it cost-effective for 1T to 15T applications.
- Crab Trolley Wire Rope Hoist: Built on a heavy-duty 4-wheel frame that travels along rails on top of double girder bridges. Recommended for capacities from 10T up to 30T+ or where severe duty cycles demand robust gearbox and brake components.
Understanding Wire Rope Reeving Systems (2/1 vs 4/1 Fall)
The reeving system determines the number of rope falls supporting the load block, affecting lifting speed, rope diameter, and vertical hook drift:
| Reeving System | Hook Movement | Mechanical Advantage | Best Application |
|---|---|---|---|
| 2/1 Fall (Single Reeved) | Slight lateral hook drift during lift | 1x speed / higher rope tension | General material handling, shorter lifts |
| 4/1 Fall (Double Reeved) | True Vertical Lift (Zero lateral drift) | 2x load capacity / lower rope stress | Precision die alignment, mold placing, paper rolls |
Speed Control: Dual Speed Motors vs VVVF Inverter Drives
Modern industrial hoists offer advanced speed controls to eliminate load swing and ensure precision positioning:
- 1:10 Dual Speed Creep Motor: Features a main high-speed winding for fast lifting and an auxiliary slow winding (creep speed) for delicate landing of heavy dies or machinery.
- VVVF (Variable Voltage Variable Frequency) Drives: Provides smooth, stepless acceleration and deceleration from 0 to 100% speed, reducing mechanical shock loads on gears and extending wire rope life by up to 40%.
Induct Crane ERP Fleet Management & Spare Parts Portal
When a wire rope guide breaks or a brake disc wears out, searching through printed manuals for part numbers wastes valuable production time. Induct Crane ERP assigns every hoist a digital twin inside your Customer Portal:
"Open your Customer Portal on any tablet or smartphone, select your hoist serial number, and view exploding 3D diagrams with direct 1-click ordering for rope guides, wire ropes, pendant switches, and brake coils."
1-Click Spare Parts Replenishment
Never suffer extended hoist downtime. Log into the Induct Crane Portal to view the exact bill of materials (BOM) for your installed wire rope hoist, check spare part availability, and order original OEM replacements instantly.
Questions Answered in This Guide
Q1.What is the standard wire rope safety factor on Induct Crane hoists?
All Induct Crane wire rope hoists feature a minimum safety factor of 5:1 on the wire rope under IS 3938 standards, using high-tensile galvanized 19x7 or 6x36 steel wire ropes with independent wire rope core (IWRC).
Q2.How do I know which beam flange width my monorail hoist requires?
Induct Crane monorail trolley wheels feature adjustable suspension studs that accommodate standard ISMB/NPB beam flange widths from 100mm to 300mm+.
Q3.Where can I purchase genuine Induct Crane hoist spare parts?
You can request hoist spare parts online at http://inductcrane.in/products or directly order through your Induct Crane Customer Portal dashboard at http://inductcrane.in/portal/dashboard.
